網站首頁 > 產品中心 > ，美國CPC接頭
，CPC接頭">NS212系列接頭，美國CPC接頭
，CPC接頭

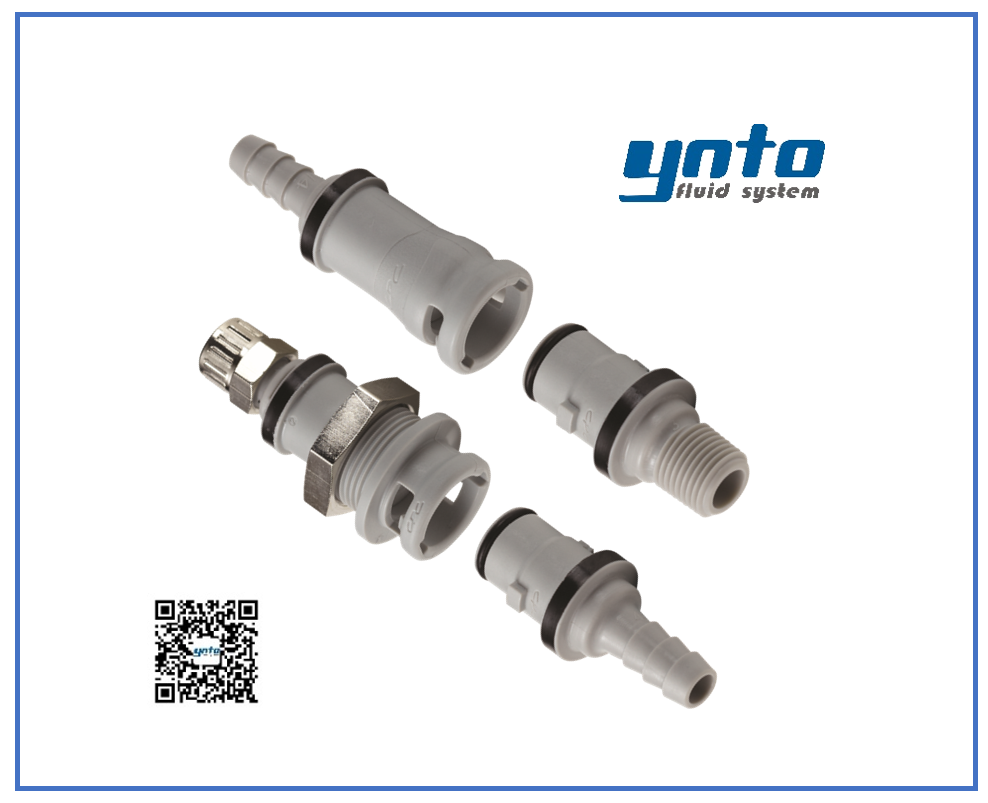

NS212系列接頭
NS212系列接頭
，美國CPC接頭
，CPC接頭
NS212系列接頭，美國CPC接頭，CPC接頭
NS212 系列
NS212系列接頭跟CPC其它無溢漏系列的接頭一樣，為提供快速、安全、真正無泄漏管線連接而設計。NS212 提供了一種快速、旋接式接頭，帶一體式鎖緊裝置和雙面無泄漏截止閥。NS212 亦具有抗化學性，是許多應用的理想產品。
Features and Benefits
Features
Benefits
Efficient, non-spill design
Disconnect under pressure with no spills
Multiple seal materials
Broad chemical compatibility for diverse applications
Twist-to-connect locking
Easy, non-spill connections in tight
spaces
Compact design
High flow in a small connector
Ultra low air inclusion
Minimizes contaminants, reduces the need to purge lines
Specifications
Pressure:
Vacuum to 45 psi, 3.1 bar
Temperature:
32° F to 120° F/0° C to 49°C
Flow capacity:
Cv~0.45
Spillage:
<0.025 cc/disconnect
Inclusion:
0.009 cc/connect
Materials:
Main components and valves:
Glass-filled polypropylene
Valve spring:
316 stainless steel
Seal material:
EPDM (FKM/Simriz FFKM optional)
Color:
Gray with black accent standard
Tubing Sizes:
1/8" to 1/4" (3.2mm to 6.4mm)
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions. Use the graphs above as a guide.
Cv Value
Cv ~0.45
Legend
，CPC接頭
NS212 系列
NS212系列接頭跟CPC其它無溢漏系列的接頭一樣，為提供快速
、安全、真正無泄漏管線連接而設計
。NS212 提供了一種快速
、旋接式接頭，帶一體式鎖緊裝置和雙面無泄漏截止閥
。NS212 亦具有抗化學性，是許多應用的理想產品
。
Features and Benefits
| Features | Benefits | ||
|
|
Efficient, non-spill design |
|
Disconnect under pressure with no spills |
|
|
Multiple seal materials |
|
Broad chemical compatibility for diverse applications |
|
|
Twist-to-connect locking |
|
Easy, non-spill connections in tight spaces |
|
|
Compact design |
|
High flow in a small connector |
|
|
Ultra low air inclusion |
|
Minimizes contaminants, reduces the need to purge lines |
Specifications
| Pressure: | Vacuum to 45 psi, 3.1 bar | |||
| Temperature: | 32° F to 120° F/0° C to 49°C | |||
| Flow capacity: | Cv~0.45 | |||
| Spillage: | <0.025 cc/disconnect | |||
| Inclusion: | 0.009 cc/connect | |||
| Materials: | ||||
| Main components and valves: | Glass-filled polypropylene | |||
| Valve spring: | 316 stainless steel | |||
| Seal material: | EPDM (FKM/Simriz FFKM optional) | |||
| Color: | Gray with black accent standard | |||
| Tubing Sizes: | 1/8" to 1/4" (3.2mm to 6.4mm) | |||
|
|
||||
| WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions. Use the graphs above as a guide. | ||||
Cv Value
|
|
Cv ~0.45 |
|
Legend |
|
