DTLD

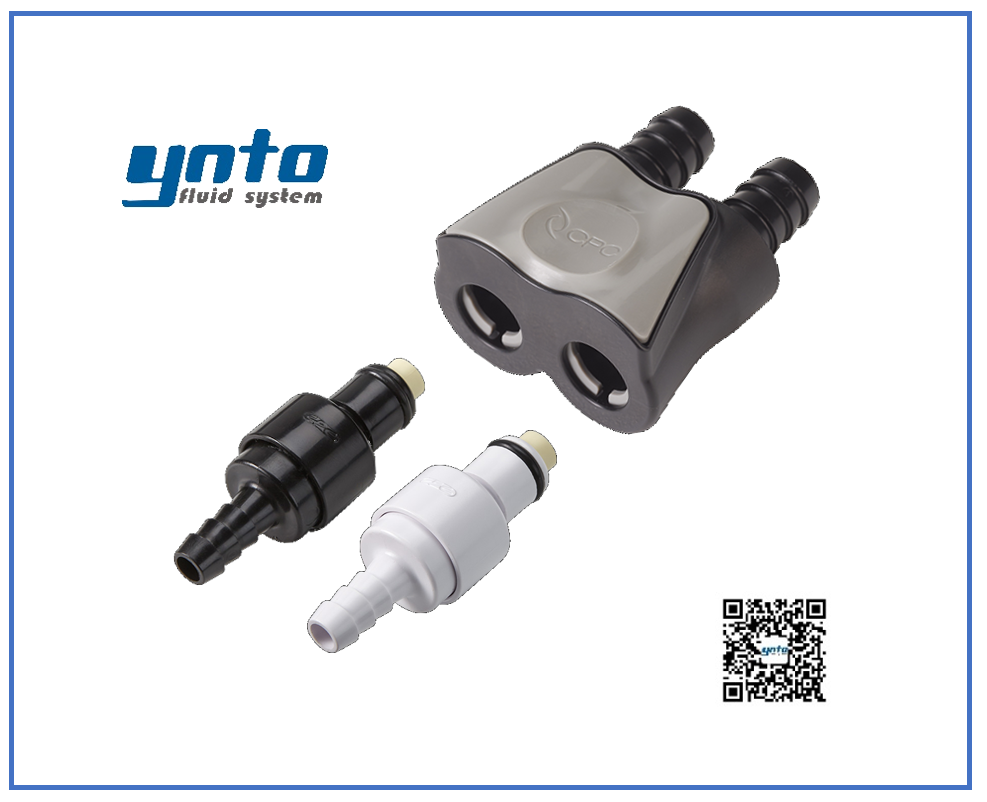

The 1/4" flow DTLD Series dual flow couplings provide a unique thumb latch with independent or simultaneous connections of loose tube sets. Made from ABS thermoplastic, the DTLD Series valved couplings ensures when connecting one insert, the second insert is prevented from disconnecting. One-hand operation makes the DTLD Series the choice for simple, independent connections of dual port connections. The DTLD Series is compatible with all PLC, PLC12 and LC Series Inserts.

Features and Benefits

Features		Benefits
	Single thumb latch		Minimizes inadvertent latch activation
	Latch always in position to accept insert		Ensures leak-free operation
	Compact, modular design		Fits well in the hand and is easy to wipe down
	Independent quick connections		Requires minimal manual dexterity

Specifications

Pressure:		Vacuum to 20 psi, 1.38 bar
Temperature:		32°F to 120°F (0°C to 48°C)
Materials:
Main components:		ABS
Thumb Latch and Retainer:		Acetal
Internal insert valve:		Polypropylene
Springs:		316 Stainless steel
O-rings:		Buna-N
Color:		White with blue latch Molded Black with gray latch
Tubing Sizes:		1/4” to 3/8” ID, 6.4mm to 9.5mm ID
Compliance:		REACH and RoHS
Internal body valve:		Acetal



WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of CPC’s products in their own application conditions.
